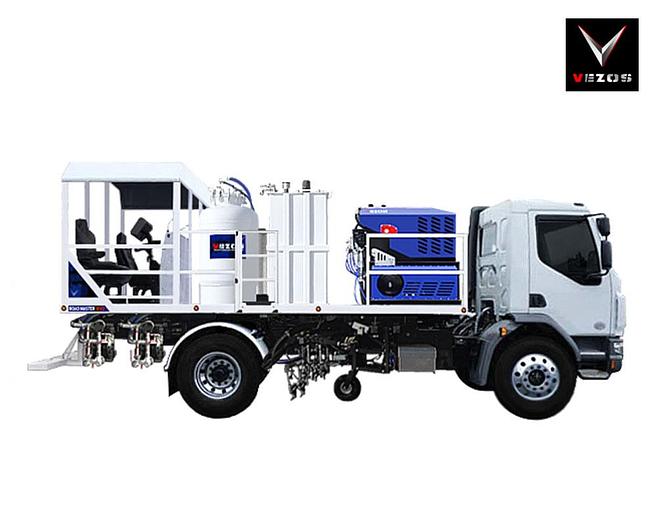

Line Striping Truck ROADMASTER 20

Line Striping Truck ROADMASTER 20

Description

ROADMASTER 20 Line Striping Truck VEZOS ROADMASTER 20 line marking truck is ideal solution for municipalities, aviation markings, road marking & highways. The standard setup includes an ROADMASTER 20 module with two fully chromed 10gpm HYDREX 630 PowerMax piston pumps, a double autonomous hydraulic circuit system & TCS cooling technology. A canopy covered rear operation station, allows operators to control the entire system from the main console. Discover our custom build options depending on your requirements. *Photos may contain features that are not included on the standard edition of the product.* STANDARD SETUP HYDRAULIC PAINT PRESSURE SYSTEM Module ROADMASTER 20 - 2 Autonomous & complete hydraulic circuit systems - 2 HYDREX 630 PowerMax hydraulic fully chromed piston paint pumps | 10 gpm (x2) @2150 psi - 4 High pressure pump paint filters - TCS system cooling technology - 55 HP Diesel engine PAINT STORAGE - 2 Drum holders 55 gal each PAINT LOADING SYSTEM - 2 SST Hydraulic paint loading pumps 1 1/2" complete with hosing GLASS BEAD SYSTEM - 1 Carbon steel pressure bead tank 750 lbs. capacity CARRIAGES - 2 Hydraulic gun carriages assemblies with HD pneumatic tires & solenoid boxes - 2 Air lifts - 3 Paint gun actuators Gun configuration: - 2 Automatic airless paint guns + 2 glass bead triggers (left) - 1 Automatic airless paint gun + 1 glass bead trigger (right) - Manual paint | stencil kit (15m hose, manual airless gun, reel) REAR OPERATORS STATION - Canopy deck setup - 2 Rear operator suspension type seat assemblies STD - Operators main control console GUIDANCE SYSTEM - 2 Road marking controllers SKIPLINE USA (4 channels) ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS - Platform base - SST chromed HYDREX 630 PowerMax piston pump - Additional HYDREX 630 PowerMax piston pump (3rd color) - Paint & bead line for additional pump - HD Monitor & Camera kit (1-2) - Bead tank 1500 lbs. capacity - Vacuum bead loading system - Hydraulic paint agitators - Dual gun carriage - Drum tie-down 55 gallon (2-4) - Paint SST tank 65 gallons x 2qty |125 gallons x 2qty - Paint totes 125 gallons x 2qty - Gun actuators - Gallon counters - Strobe lighting kit - Laser guidance system HD kit - Intercom system 2 & 3 station - Closed box type operation cab - Aluminum toolbox - Fire extinguishers - Air jets for gun carriage - Paint heating system - Additional gun & bead guns - LED message board - Digital speedometer

Specifications

ManufacturerVezos
ConditionNew
