Description

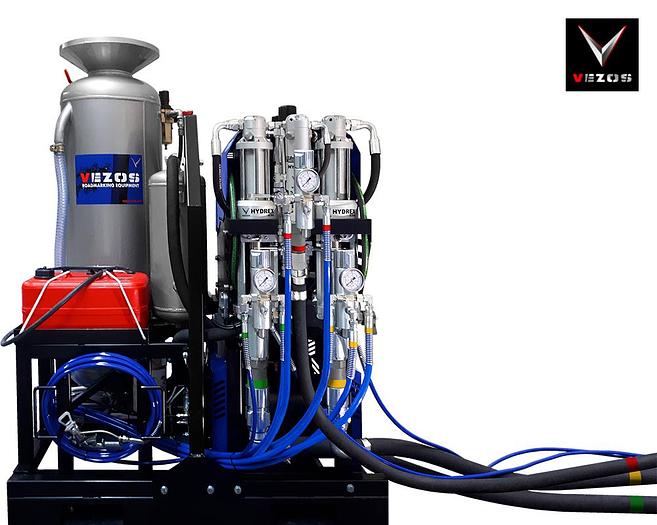

ROADMASTER 10 MAX Line Striping Truck (DC)
VEZOS ROADMASTER 10 MAX line striping truck DC is ideal for airport markings, city roads, county and municipality line striping applications. Choose between VEZOS unique ROADMASTER striping modules, hydraulic carriages or retractable arm brackets, monitor and guidance systems and several innovative features. The entire line striping system folds up into the trucks bed for easy transportation, storage and on patch up jobs.
*Photos may contain features that are not included on the standard edition of the product.*
HYDRAULIC PAINT PRESSURE SYSTEM
vezos line striping kit - road marking truck - line marking truckMODULE ROADMASTER 10 MAX
- 2 HYDREX 230 hydraulic fully chromed piston paint pumps | 5gpm (x2) @ 3000 psi
- HD large hydraulic oil cooler
- TCS system cooling technology
GLASS BEAD SYSTEM
- 1 Carbon steel pressure bead tank 300 kg - 660 lbs capacity
- Glass bead tank loading steps
BRACKET
- 3 Automatic airless paint guns + 3 glass bead triggers
- Manual paint | stencil kit (15m hose, manual airless gun, reel)
GUIDANCE SYSTEM
- 1 Road marking controllers SKIPLINE USA (4 channels)
not included in HYDREX 630 version
- 1 Re-striping pointer
ADDITIONAL OR REPLACEMENT OVER STANDARD PARTS
CARRIAGE setup
- 2 Hydraulic gun carriages assemblies with HD pneumatic tires & solenoid boxes
- 2 Air lifts
- 3 Paint gun actuators
Gun configuration:
- 2 Automatic airless paint guns + 2 glass bead triggers (left)
- 1 Automatic airless paint gun + 1 glass bead trigger (right)
- SST chromed HYDREX 630 PowerMax piston pump
- Additional HYDREX 630 PowerMax piston pump (2nd color)
- Additional HYDREX 230 PowerMax piston pump (3rd color)
- Paint & bead line for additional pump
- Canopy operation cab with single ride seat assembly
- Suspension type ride seat assembly
- SKIPLINE USA controller (4 channels)
- HD Monitor & Camera kit (1-2)
- 2nd bead tank 300 kg - 660 lbs capacity
- Hydraulic paint agitators
- Dual gun carriage
- Paint SST tank 65 gallons x 2qty
- Gun actuators
- Gallon counters
- Strobe lighting kit
- Laser guidance system HD kit
- Intercom system 2 & 3 station
- Aluminum toolbox
- Fire extinguishers
- Air jets for gun carriage
- Additional gun & bead guns
- LED message board
Specifications
| Manufacturer | Vezos |
| Model | ROADMASTER MAX 10 TRUCK-MOUNTED |
| Condition | New |
| Material delivery (max) gpm | 10 |
| Material delivery (max) lpm | 38 |
| Working pressure (max) psi | 3000 |
| Working pressure (max) bar | 200 |
| Type | palletized |
| Engine | HONDA or KOHLER |
| Pump | HYDREX 230(x2) |
| Color - Pump | 2 color |
| Arm bracket | 1, 2 |
| Gun setup | 2 |
| System - Operation | Automatic |
| Dimensions (striper) in | 49.2x49.2x63.8(h) |
| Dimensions (striper) cm | 125x125x162(h) |
| Paint gun | 3 |
| Guard | 3 |
| Tip | 3 |
| Glass bead gun | 3 |
| Manual stencil kit | included |
| Controller 4 channel | included |
| Pointer | included |
| Glass bead system pressurized 660 lbs | included |
| Camera - Monitor kit | included |
| Part Number | 77.2227624, 77.2227628 |
