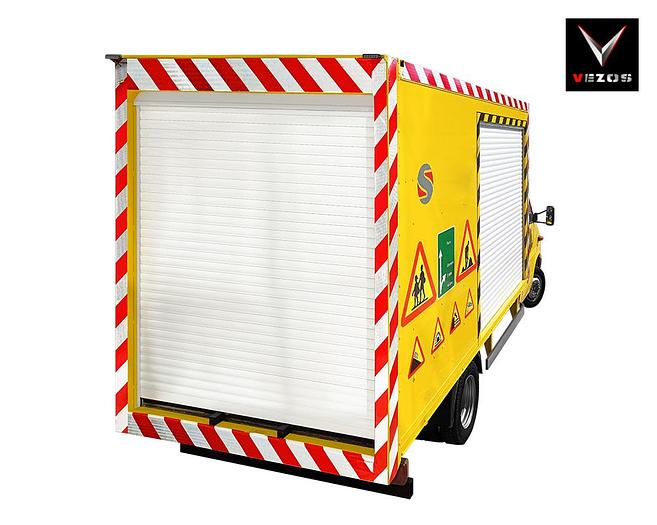

Road Marking Truck ROADMASTER 5 - 1 Paint Pump

Road Marking Truck ROADMASTER 5 - 1 Paint Pump

orCall 1-888-808-8827

Description

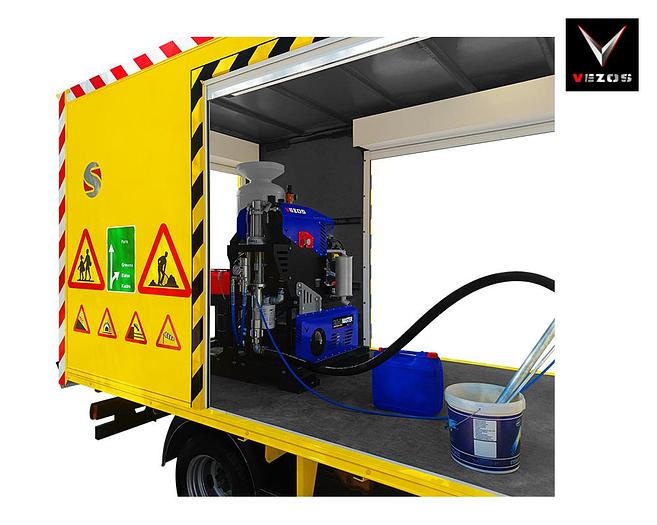

ROADMASTER 5 Road Marking Truck - 1 Paint Pump VEZOS ROADMASTER 5 road marking truck (1 PUMP) can be operated entirely by one person directly from the vehicles cabin. Built on a palletized base and equipped with a single HYDREX 230 hard chromed hydraulic piston pump(s), TCS technology & a fully retractable chassis for safe storage. Take advantage of VEZOS monitor & camera HD kit and enjoy the ride by operating the entire unit from the vehicles cabin. *Photos may contain features that are not included on the standard edition of the product.* ROADMASTER 5 ROAD MARKING TRUCK - 1 PAINT PUMP Equipped with a single HYDREX 230 pump, fully automatic spray & monitor system, contractors can control the entire striping procedure from the trucks cabin. The entire system is fully retractable and fits securely on the deck of your truck. VEZOS also offers custom built options, such as double arm brackets etc. MODULE ROADMASTER 5.0 - 1 HYDREX 230 hydraulic fully chromed piston paint pumps | 5 gpm @ 3000 psi - HD large hydraulic oil cooler - TCS system cooling technology - 23 HP HONDA engine GLASS BEAD SYSTEM - 1 steel pressure bead tank 300 kg - 660 lbs capacity - Glass bead tank loading steps BRACKET - Single retractable & foldable arm bracket Gun configuration: - 2 Automatic airless paint guns + 2 glass bead triggers (left) or MMA 1:1 | 98:2 gun set up - Manual paint | stencil kit (15m hose, manual airless gun, reel) GUIDANCE SYSTEM - 1 Road marking controllers SKIPLINE USA (4 channels) - 1 Re-striping pointer ADDITIONAL OR REPLACEMENT OVER STANDARD PARTSLine Striping Truck - Road Marking Truck - Line Marking Truck - Additional HYDREX 230 piston pump (2nd color) - Paint & bead line for additional pump - Canopy operation cab with single ride seat assembly - Suspension type ride seat assembly - SKIPLINE USA controller (4 channels) - HD Monitor & Camera kit (1-2) - 2nd bead tank 300 kg - 660 lbs capacity - Hydraulic paint agitators - Dual gun carriage - Paint SST tank 65 gallons x 2qty - Gun actuators - Gallon counters - Strobe lighting kit - Laser guidance system HD kit - Intercom system 2 & 3 station - Aluminum toolbox - Fire extinguishers - Air jets for gun carriage - LED message board

Specifications

ManufacturerVezos
ModelROADMASTER 5.0 TRUCK-MOUNTED
ConditionNew
Stock Number77.2027515 (KIT)
Material delivery (max) gpm5.0
Material delivery (max) lpm19
Working pressure (max) psi3000
Working pressure (max) bar200
Typepalletized
EngineHONDA 22 HP
PumpHYDREX 230
Color - Pump1 color
Arm bracket1
Gun setup2
System - OperationAutomatic
Dimensions (striper) in49.2x49.2x63.8(h)
Dimensions (striper) cm125x125x162(h)
Paint gun2
Guard2
Tip2
Glass bead gun2
Manual stencil kitincluded
Controller 4 channelincluded
Pointerincluded
Glass bead system pressurized 660 lbsincluded
Camera - Monitor kitincluded
Part Number77.2027514, 77.2027515
