Description
Self Propelled Line Striper PROSTRIPE 300 SP DC | 70 lbs Gravity Glass Bead System | 18 gal Paint Hopper | 2 Paint Gun | Tow-Behind Rider FLIPDRIVE

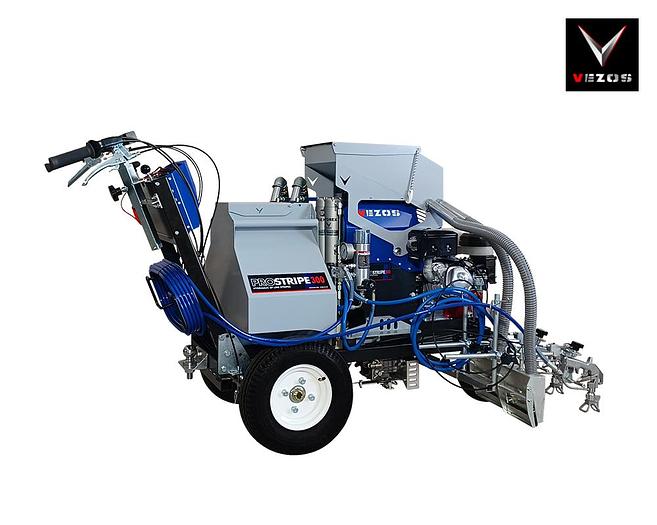

PROSTRIPE 300 SP DC ride along self propelled line striper is a cost effective solution for line marking contractors that take on double color line striping or prefer to have two pump material delivery. This model is offered complete with a divided color paint tank, glass bead gravity system and an innovative drive along seat attachment FLIPDRIVE TB. The seat can also be used as a stand on platform for extra visibility of the road ahead. Proven best panoramic job site view in the market, even with the bead tank in place!
*Photos may contain features that are not included on the standard edition of the product.*
Dual Color Self Propelled Line Striper PROSTRIPE 300 DC with Tow-Behind Rider FLIPDRIVE
PROSTRIPE 300 DC self-propelled line stripers can be operated with or without the line striper seat FLIPDRIVE as the SP system is located on the unit and not on the attachment. The FLIPDRIVE TB ride along accessory can be used either as seat or as a stand on platform.
Includes:
- FLIPDRIVE TB ride along double ascent seat
- Gravity glass bead kit (2 gun)
- Paint hopper dual color
- Airless spray gun(s) x 2 qty
SELF-PROPELLED LINE STRIPER
√ SP system located directly on the striper
√ 3-way drive / ride system
√ Motorcycle type motion control drive
√ Operation speed 16 km/h - 10 lbs
WIDE VIEW DESIGN
√ Low profile design for panoramic view of job site
√ Road view ahead even in sitting position
√ Extreme visibility even with glass bead tank in place
√ No head or body tilting to stripe | Safety first
HYDREX PISTON PUMP
√ Hydraulic piston pump HYDREX 70
√ 1 & 2 color set up
√ Slow stroke 8.5 lit/m - 2.3 gal/min delivery
√ Built in filter
DUAL PAINT HOPPER 68 lit | 18 gal
√ Low profile paint tank for increased visibility
√ Double colour
√ Lift brackets & security hitches
GLASS BEAD HOPPER 32 kg | 70 lbs
√ Gravity tech bead system
√ Steel hopper with wide opening
√ Easy connection, no tools needed
MANUAL GUN OPERATION
√ Electric paint gun actuator
√ 1-2 manual paint gun set-up
√ Adjustable gun height
√ Front and rear gun placement
√ Removable gun for stenciling
OPERATION CONSOLE PS 300
√ Kill switch | Engine throttle
√ Engine & system ON/OFF
√ Pressure gauge
√ Hand brake
√ Cup holder
FLIPDRIVE LINE STRIPE RIDER
√ Double ascent ride | sit – stand ride along
√ Tow behind attachment
√ Rear extra space for cones or gas tank
√ Hidden tool compartment with anti-slip surface
EXTRA FEATURES
√ Anti-vibration control
√ T.C.S cooling technology
√ Hydraulic oil reservoir 2.5 gal & oil level indicator
√ Storage compartment (1.4 gal capacity, easy reach)
√ Enhanced electrical system (automotive type alternator)
√ Fully adjustable steering bar (height, width, grip inclination)
OPTIONAL ADD-ONS
√ Re-striping pointer
√ LINEMATIC system (automatic operation)
√ Light kit bracket (led, strobe, halogen etc.)
√ Steel secure bucket lid (fits on all US-EU paint buckets)
Specifications
Manufacturer | Vezos |
Model | PROSTRIPE 300 MANUAL, PROSTRIPE 300 MANUAL + TB RIDER |
Condition | New |
Stock Number | 23.9255046 |
Material delivery (max) gpm | 2.3 |
Material delivery (max) lpm | 8.5 |
Working pressure (max) psi | 3350 |
Working pressure (max) bar | 230 |
Type | self-propelled |
Engine | HONDA 9.0 HP |
Pump | HYDREX 70(x2) |
Color - Pump | 2 color - DC |
Gun setup | 2 |
System - Operation | Manual |
Dimensions (striper) in | 67x28x42 (h) |
Dimensions (striper) cm | 170x72x107 (h) |
Paint gun | 2 |
Guard | 2 |
Tip | 2 |
Glass bead gun | 2 |
Rider tow-behind | 23.9115501 |
Paint hopper 18 gal DC | 23.9214001 |
Glass bead system gravity 70 lbs | 23.9224322 |
Part Number | 23.9255040, 23.9255041, 23.9255046 |
Pointer | 23.7002204 |
