Walk Behind Line Striper PROSTRIPE 300 WB DC - 2 Paint Gun - Dual Color Operation

Walk Behind Line Striper PROSTRIPE 300 WB DC - 2 Paint Gun - Dual Color Operation

orCall 1-888-808-8827

Description

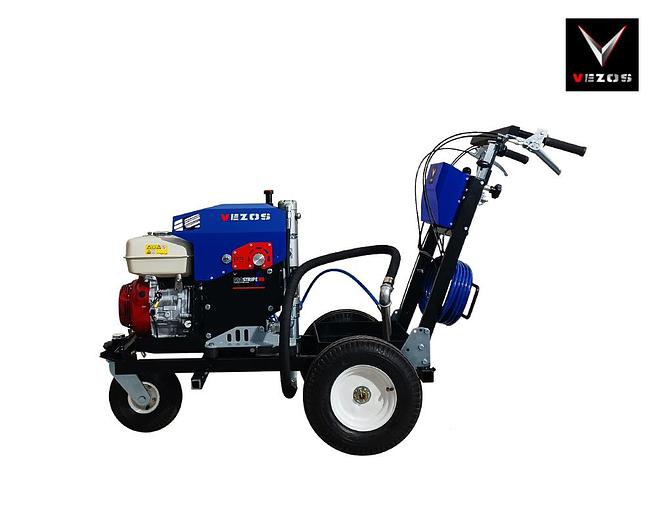

Walk Behind Line Striping Machine PROSTRIPE 300 WB DC | Double Color Operation | 2 Paint Gun PROSTRIPE 300 WB DC Dual Color line striper - an innovative, user-friendly hydraulic striping solution designed specifically for contractors. This advanced machine delivers precise, high-quality striping with two colors, ensuring optimal efficiency and professional results. Equipped with two HYDREX slow stroke paint pumps, double suction hoses and TCS full hydraulic flow cooling system, this versatile striper guarantees exceptional performance. For even greater convenience, the PROSTRIPE 300 WB DC perfectly integrates with VEZOS DC paint hopper, reducing refilling time and boosting productivity. Additionally, it is compatible with various international-sized paint buckets, making it a versatile choice for contractors worldwide. *Photos may contain features that are not included on the standard edition of the product.* Dual Color Walk Behind Line Striper PROSTRIPE 300 WB DC PROSTRIPE 300 DC walk-behind line striper has an easy to operate gun selection system located on the steering bar, making dual color line striping a simple and fast procedure, no need to change units when striping with two colours (yellow – white), combine your work with one line striper. Equipped with two HYDREX slow stroke paint pumps and double suction hoses, the PROSTRIPE 300 WB DC enables high-volume paint application with reduced downtime. The TCS full hydraulic flow cooling system keeps your machine running smoothly, even in demanding conditions. Plus, its compatibility with international-sized paint buckets makes it a versatile choice for contractors worldwide. The PROSTRIPE 300 WB DC also integrates with the VEZOS DC paint hopper, reducing refilling time and boosting productivity. Whether you're working on a small or large-scale project, this machine is designed to help you achieve professional results with ease. WIDE VIEW DESIGN √ Low profile design for panoramic view of job site √ Road view ahead even in sitting position √ Extreme visibility even with glass bead tank in place √ No head or body tilting to stripe | Safety first HYDREX PISTON PUMP √ Hydraulic piston pump HYDREX 70 √ 1 & 2 colour set up √ Slow stroke 8.5 l/m (2.3 gal/min) delivery √ Built in filter DUAL PAINT HOPPER 68 lit | 18 gal (optional) √ Low profile paint tank for increased visibility √ Single or double colour √ Lift brackets & security hitches GLASS BEAD HOPPER 32 kg | 70 lbs (optional) √ Gravity tech bead system √ Steel hopper with wide opening √ Easy connection, no tools needed MANUAL GUN OPERATION √ Electric paint gun actuator √ 1-2 manual paint gun set-up √ Adjustable gun height √ Front and rear gun placement √ Removable gun for stenciling OPERATION CONSOLE PS 300 √ Engine throttle √ Engine & system ON/OFF √ Pressure gauge √ Hand brake √ Cup holder EXTRA FEATURES √ Anti-vibration control √ T.C.S cooling technology √ 5 gallon plastic paint bucket √ Steel secure bucket lid (fits on all US-EU paint buckets) √ Hydraulic oil reservoir 2.5 gal & oil level indicator √ Storage compartment (1.4 gal capacity, easy reach) √ Enhanced electrical system (automotive type alternator) √ Fully adjustable steering bar (height, width, grip inclination) OPTIONAL ADD-ONS √ Re-striping pointer √ Paint hopper (18 gal) √ Gravity glass bead system (70 lbs) √ LINEMATIC system (automatic operation) √ Light kit bracket (led, strobe, halogen etc.)

Specifications

ManufacturerVezos
ModelPROSTRIPE 300 MANUAL
ConditionNew
Stock Number23.9255018
Material delivery (max) gpm2.3
Material delivery (max) lpm8.5
Working pressure (max) psi3350
Working pressure (max) bar230
Typewalk-behind
EngineHONDA 6.5 HP
PumpHYDREX 70(x2)
Color - Pump2 color - DC
Gun setup2
System - OperationManual
Dimensions (striper) in67x28x42 (h)
Dimensions (striper) cm170x72x107(h)
Paint gun2
Guard2
Tip2
Glass bead gun2
Paint hopper 18 gal DC23.9214001
Glass bead system gravity 70 lbs23.9224322
Part Number23.9255018, 23.9255019, 23.9255020, 23.9255021
Pointer23.7002204
