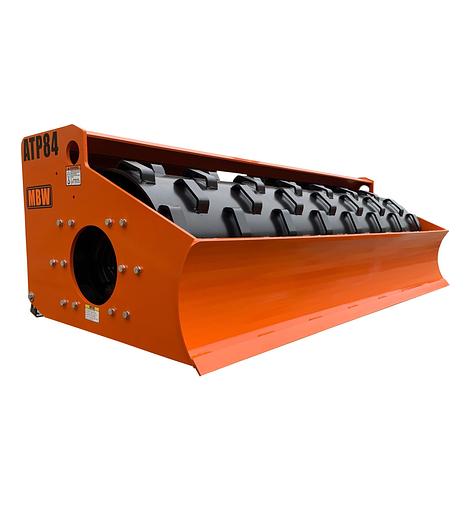

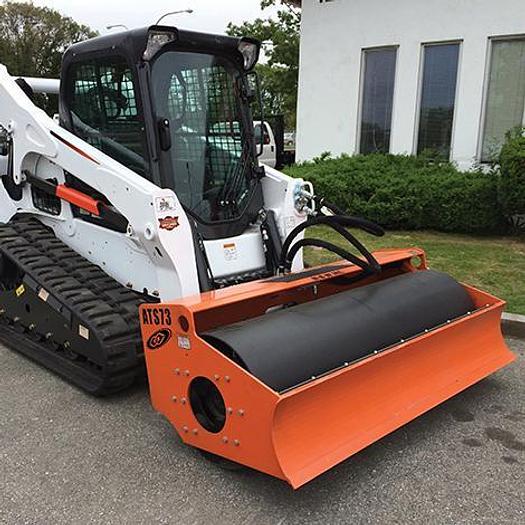

SKID STEER ROLLER ATTACHMENT

ATS (smooth drum) and ATP (padded drum) models are available in 73 and 84 inch working widths. All models feature hydraulically powered exciter systems lubricated by an oil mist design. All models feature a patented exciter shaft design that minimizes exciter shaft deflection, lower operating temperatures, and provide MBW attachments with the industry’s lowest incidence of bearing and seal failure. A knockdown blade is integral to the roller frame. Vibrating drums are isolated from the frame minimizing transmission of vibration to the host machine. All models come with a universal quick attach system. MBW compaction attachments for skid-steer loaders offer contractors and rental yards a cost effective, low maintenance alternative to comparatively high cost self-contained rollers. Additional Information: WEIGHT N/A AMPLITUDE .05 IN (1.3 MM) CENTRIFUGAL FORCE** 8850 LB (39.4 KN) EXCITER SPEED 3000 RPM LENGTH 43.3 IN (110 CM) HEIGHT 29 IN (74 CM) WORKING WIDTH 73 IN (185 CM), 84 IN (213 CM) FLOW REQUIREMENT 10-50 GPM (38-189 LPM) PRESSURE REQUIREMENT 1500-3000 PSI (103-207 BAR) HYDRAULIC CONNECTION 1/2" FLAT FACE QUICK COUPLING ROLLER TYPE SMOOTH, PADDED
